Ezviz | C8PF | Motorized Wi-Fi camera

Ezviz - C8PF - Dual lens motorized Wi-Fi camera

Ezviz - C8PF is a dual-lens motorized Wi-Fi camera measuring 154x116x164 mm with a wider and clearer view thanks to Picture-in-Picture viewing. With the dual lens you can keep an eye on the big picture while, at the same time, getting into the details. This Pan/Tilt and Zoom camera allows you to obtain 8x mixed zoom to guarantee unprecedented home protection . Additionally, the Picture-in-Picture video display mode allows for wide and close-up shots.

---

If you need other products dedicated to your smart home , clickhere .

Ezviz - C8PF is the world's first smart home camera model equipped with the extraordinary 8x mixed zoom technology , achieved thanks to a 12mm telephoto lens and a 2.8mm wide-angle lens. The device is also equipped with four infrared illuminators to ensure optimal night vision for distances up to 30 meters.

---

Ezviz - C8PF is capable of providing useful Picture-in-Picture viewing , available in both playback and live viewing modes. The camera shows the full frame in a small window, while showing enlarged details in full screen, without blurring the image. You can always tap to zoom in on areas of interest, so you don't miss any details of even the most distant objects. The incredible blur-free 8x mixed zoom technology ensures enhanced viewing.

Built-in microphone and speaker

Ezviz - C8PF will literally be the extension of your sight, hearing and voice. The dual-lens Wi-Fi camera has a built-in microphone and speaker so you can talk comfortably with family members, welcome visitors or even ward off unwanted guests anywhere and at any time through the simple use of your smartphone.

---

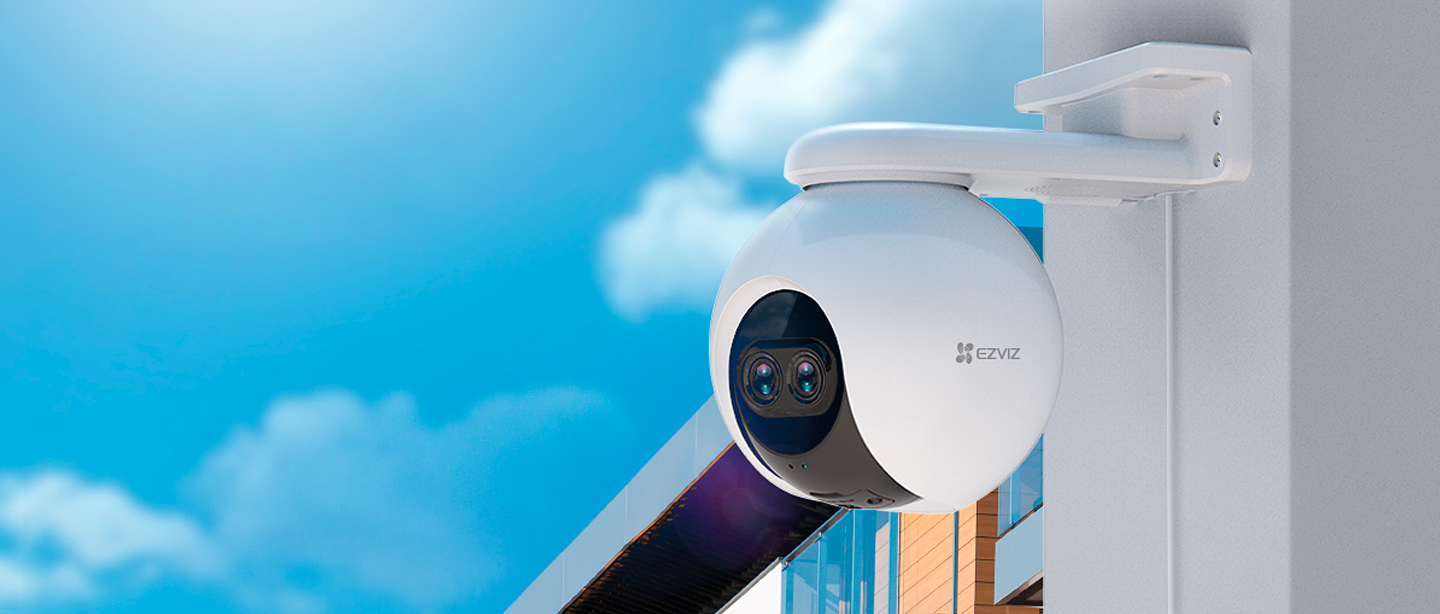

The Ezviz - C8PF camera offers excellent flexibility and durability. With a pan-and-tilt lens design, the camera offers a 360° panoramic field of view that avoids blind spots with simple click-and-drag controls enabled by the app. The C8PF model is equipped with a structure completely resistant to atmospheric agents to guarantee maximum performance even in the most difficult weather conditions.

Ezviz 's Picture-in-Picture view - C8PF

---

Ezviz - C8PF is equipped with one of the largest local storage capacities thanks to the integrated slot for memory cards up to 512 GB. Your local security video storage system will always be at your fingertips. Furthermore, you can guarantee even greater security for your data by saving it on the Ezviz CloudPlay archive, a service available by subscription.

---

Technical characteristics of Ezviz - C8PF

• Image sensor: Dual 1/2.7" CMOS progressive scan sensor
• Shutter Speed: Self-adaptive shutter
• Lens: 2.8mm (0.11") at f 1.6 + 12mm (0.47") at f 1.6
• PT Angle: 340° (pan), 80° (tilt)
• Minimum illumination: 0.05 lux with (f 1.6 AGC active), 0 lux with IR
• Lens mount: M12
• Day/Night Viewing: IR filter with automatic switching
• DNR: 3D DNR
• WDR: Digital WDR
• BLC: Supported
• B/W night vision: 30 m (98.42")
• Maximum resolution: 1920x1080 px
• Frame rate: up to 15 fps
• Video compression: H.265/ H.264
• H.265 type: main profile
• Video signal transmission speed: Ultra-HD; HD; standard. Adaptive baud rate
• Audio signal transmission speed: self-adaptive
• Max bit rate: 2Mbps
• Wi-Fi Standard: IEEE802.11b; 802.11g; 802.11n
• Frequency range: 2.4GHz ~ 2.4835GHz
• Channel Bandwidth: Support 20MHz
• Security: 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission rate: 11b: 11Mbps; 11g: 54Mbps; 11n: 72Mbps
• Wi-Fi pairing: AP pairing
• Protocol: Ezviz CloudPlay proprietary protocol
• Wired Network: RJ45 x 1 (10M/100M Adaptive Ethernet Port)
• Intelligent alarm system: people detection using artificial intelligence
• Custom alarm area: supported
• Audio: Microphone supported
• General functions: Anti-flicker; dual flow transmission; heartbeat; password protection; watermark
• Local storage: MicroSD card slot (up to 512GB)
• Cloud storage: Ezviz CloudPlay storage
• Operating conditions: -30°C (-22°F) to 60°C (140°F)
• Degree of protection: waterproof design
• Power: 12V DC/1A
• Power consumption: 12W
• Dimensions: 154x116x164 mm (6.06"x4.57"x6.46")
• Weight: 578 g (20.39 oz)

---

If you have questions or concerns about how Ezviz products work
Click the button below

---

A single app and an application for Windows

All Ezviz products can be viewed, configured and managed via the dedicated app, totally free, available for iOS and Android. By installing the Ezviz app on your smartphone, just scan the QR code to be online immediately. If you want to view the recordings of your PC camera (for Windows only), frame the specific QR.

---
