EZVIZ - TY1 4 MP - Smart Wi-Fi Camera

Ezviz - TY1 4 MP - Smart Wi-Fi Camera

Ezviz - TY1 4 MP is a smart Wi-Fi camera with pan and tilt functions. The 360° field of view of the Ezviz - TY1 4 MP camera and intelligent monitoring allow you to easily monitor the entire space, for safety both day and night. This smart camera records what's happening in every corner of your home in 2K resolution. Ezviz - TY1 4 MP, in fact, records images in 2K resolution, offering sharp details even with the 4x digital zoom, to see everything clearly, both in live and playback mode.

---

If you need other smart cameras, click here.

A sharp, intelligent eye with no blind spots

With just one Ezviz - TY1 4 MP smart Wi-Fi camera, every corner of your home is under control. The large 360° field of vision ensures complete coverage so you don't miss any details. Furthermore, when the camera detects a moving object, it automatically follows it and warns you by sending an image in real time. Thanks to the two-way communication function, you can talk to your loved ones while discouraging unwanted strangers. By using the Ezviz app on your mobile device, you can communicate easily and conveniently wherever you are.

---

Features of the smart Wi-Fi camera

• 2K resolution
• Intelligent night vision (up to 10m)

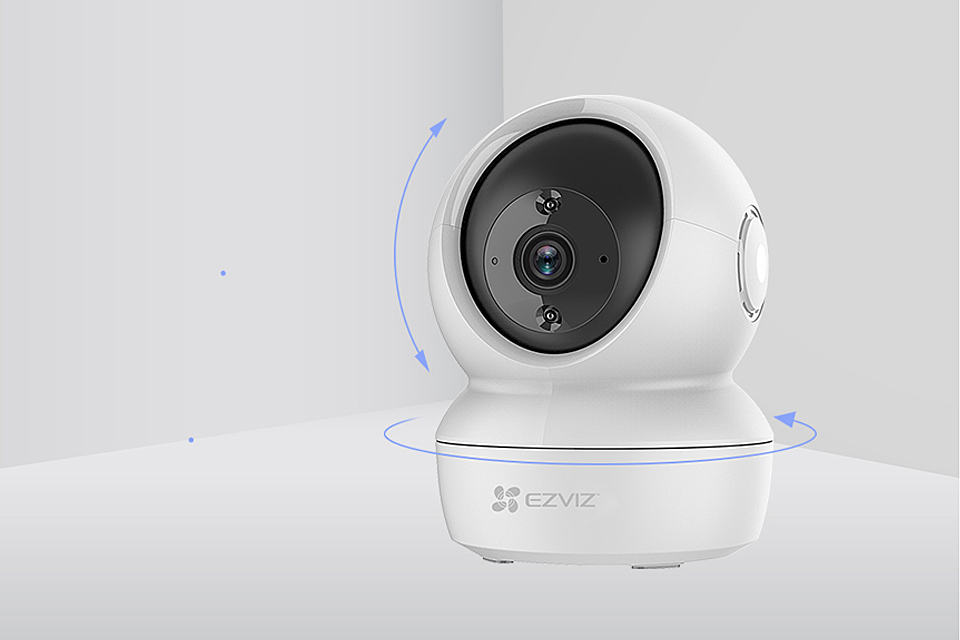

• 360° visual coverage with motorized pan and tilt
• Sleep mode for privacy protection
• Motion detection
• Intelligent monitoring
• H.265 video technology
• Two-way communication
• Ability to view camera recording remotely
• 2.4 GHz Wi-Fi
• microSD slot (up to 256 GB)

---

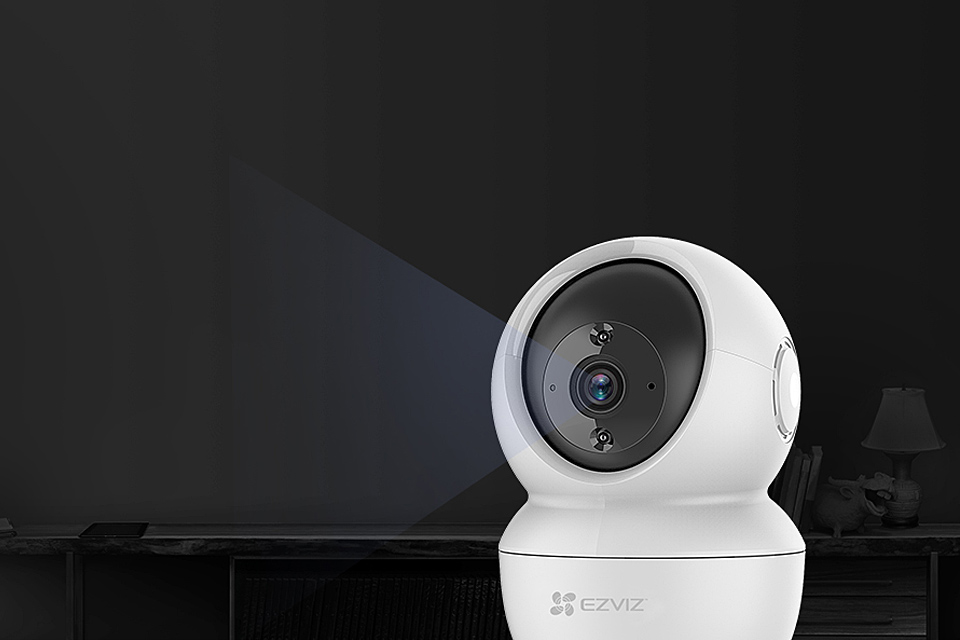

Better vision in the dark and H.265 video compression

Thanks to the powerful infrared LED lights of the Ezviz - TY1 4 MP, you can see up to 10 meters in dim light. The data transfer between the camera and Ezviz cloud, however, is entirely encrypted. Only the user has the codes to decrypt their data. For a higher level of privacy protection you can always put the camera to sleep through the Ezviz app. The smart Wi-Fi camera features advanced H.265 video compression technology, resulting in better quality video with only half the bandwidth and storage needed compared to the previous H.264 video compression standard.

---

Save your recordings thanks to flexible and secure solutions. Ezviz - TY1 4 MP is equipped with a built-in microSD card slot, to record up to 256 GB of footage. Additionally, you can save images to the Ezviz cloud for additional back-up copy.

---

Technical characteristics of Ezviz - TY1 4 MP

• Image sensor: 1/3" progressive scan CMOS, f2.2
• Shutter speed: with automatic adaptation
• Lens: 4mm, viewing angle: 124°(diagonal); 85° (horizontal); 55°(vertical)
• Lens mount: M12
• Day and night viewing: IR filter with automatic switching
• DNR: 3D NR
• WDR: Digital WDR
• Video compression: H.265/ H.264
• Video bit rate: Quad HD; Full HD; HD; Standard. Bit rate with automatic adaptation
• Resolution: 2560x1440 px
• Frame rate: 20 fps max. with automatic adaptation during network transmission
• Intelligent alarm system: motion detection
• Wi-Fi pairing: AP pairing
• Protocol: Ezviz proprietary cloud
• Interface protocol: Ezviz proprietary cloud
• Storage: microSD card slot (max 256GB)
• Power: Micro-USB
• Wired network: RJ45 × 1 (10M/100M auto-adaptive Ethernet port)
• Wi-Fi Standards: IEEE802.11b, 802.11g, 802.11n
• Frequency range: 2.4GHz ~ 2.4835GHz
• Channel bandwidth: 20 MHz
• Security: 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission speed: 1b (11 Mb/s); 11g (54Mb/s); 11n (72Mb/s)
• Output Power (EIRP): 19 dBm
• Antenna Gain: 1.9 dBi
• Operating conditions: D-10/+45 °C (+14/+113 °F); humidity 95% or less (non-condensing)
• Power: 5V DC/2A
• Power consumption: 5 W max.
• IR range: 10 m (32.8 ft) max.
• Certifications: FCC / UL / CE / WEEE / REACH / ROHS
• Dimensions: 88×88×119 mm (3.46"x3.46"x4.68")
• Weight: 259 g (9.13 oz)

---

Package contents

• 1 x TY1 Camera
• 1 x Base
• 1 x Dowel Kit
• 1 x 3m Power Cable
• 1 x Drilling template
• 1 x Power Adapter
• 1 x Quick Start Guide
• 1 x Regulatory information

---

If you have any questions or concerns about how Ezviz products work
Click the button below

---

A single app and an application for Windows

All Ezviz products can be viewed, configured and managed via the dedicated app, totally free, available for iOS and Android. By installing the Ezviz app on your smartphone, just scan the QR code to be online immediately. If you want to view the recordings of your PC camera (for Windows only), frame the specific QR.

---
