Ezviz | A3 Kit - Alarm Control Unit

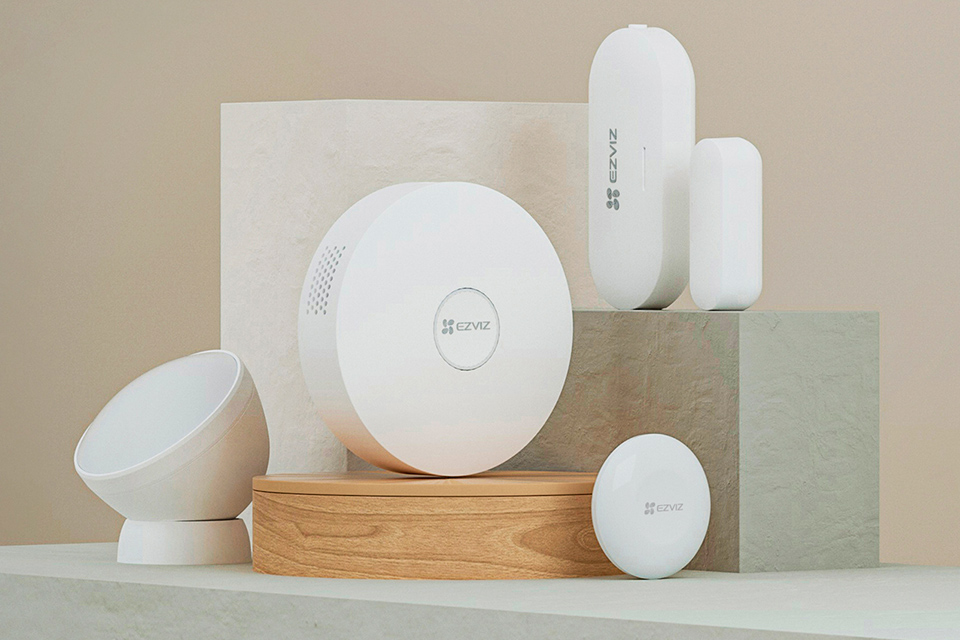

Ezviz - A3 Kit is a gateway and alarm control unit composed of detection sensors Ezviz - T1C, magnetic contacts for doors and windows Ezviz - T2C, the Ezviz A3 control unit (the gateway that makes your sensor system interoperable), and the smart button Ezviz - T3C. This alarm control unit is a great starting point to protect your home and/or business environments right away.

If you need other smart home sensors, click here.

Features of the Alarm Control Unit Kit with Sensors

• Easy pairing
• Simple configuration via Ezviz App
• Integration with Ezviz cameras
• Instant smartphone alerts in case of detections
• Installation using adhesive
• Energy-saving technology for long battery life

Choose the alarm ringtone you prefer

Basic Kit

Create automations to keep everything under control

Ezviz - A3 - Alarm Control Unit

The Ezviz - A3 alarm control unit is a home gateway for monitoring and protecting environments. It can register up to 64 Ezviz devices, sending notifications directly to your smartphone whenever a sensor detects an anomaly. Thanks to its small size of just 70x70 mm, the Ezviz - A3 gateway can be installed anywhere, such as on a table, nightstand, bookshelf, or any other location based on your needs. You can connect it using an Ethernet cable or via your home Wi-Fi network for stable and reliable performance.

Technical Specifications of Ezviz - A3

• Operating Conditions: -10/+55 °C (+14/+131 °F) - Humidity ≤ 95% (non-condensing)
• Power Consumption: 3 W (max.)
• Power Supply: Micro USB, 5 V DC / 1 A
• Communication Methods: Ethernet cable with RJ45 interface, 2.4 GHz Wi-Fi, ZigBee 3.0

T1C - Motion Detection Sensor

The motion detection sensor Ezviz - T1C sends a notification to your smartphone whenever movement is detected in a room. Installation is very simple and can be done using the adhesive.

Technical Specifications of Ezviz - T1C

• Detection Type: Passive Infrared (PIR)
• Detection Range: up to 7 m
• Detection Angle: 90° horizontal, 90° vertical
• Installation Methods: Adhesive back with magnetic parts. Supports wall mounting and ceiling installation
• Battery Type: CR2450
• Battery Life: up to 2 years in power-saving mode
• Communication Distance: <200 m (tested in open environment)
• Operating Conditions: -10/+55 °C (+14/+131 °F) - Humidity ≤ 95% (non-condensing)

T2C - Magnetic Contact for Doors and Windows

The magnetic contact for doors and windows Ezviz - T2C is suitable for most home doors and windows. It allows you to remotely check whether a door or window has been left open. When the alarm is activated, Ezviz - T2C will trigger the alarm if the door or window it is installed on is opened.

Technical Specifications of Ezviz - T2C

• Activation Distance: 25 mm for wooden doors / 15 mm for iron doors
• Operating Conditions: -10/+55 °C (+14/+131 °F) - Humidity ≤ 95% (non-condensing)
• Lithium Battery Life: up to 2 years (with an average of 30 detections per day)
• Battery Type: CR1632 × 2

T3C - Smart Button

The smart button Ezviz - T3C allows you to activate or deactivate the alarm system and its sensors with a single click. It can be installed anywhere or simply carried in your pocket. Additionally, the smart button can be used as an emergency call device.

Technical Specifications of Ezviz - T3C

• Communication Distance: < 200 m (tested in open environment)
• Modes: Arm/Disarm mode, Emergency button mode
• Operating Conditions: -10/+55 °C (+14/+131 °F) - Humidity ≤ 95% (non-condensing)
• Installation: Can be placed anywhere (adhesive back)
• Battery Type: CR2032
• Battery Life: up to 2 years in power-saving mode

Package Contents

• 1 x A3 Home Gateway
• 1 x Power Adapter for A3
• 1 x USB Cable for A3
• 1 x PIR Sensor T1C
• 1 x Pet Shield for T1C
• 1 x Opening/Closing Sensor T2C
• 1 x Smart Button T3C
• 3 x Adhesives
• 1 x Regulatory Information
• 1 x Quick Guide

If you have any questions or concerns about the functionality of Ezviz products
Click the button below

One App for All Devices

All Ezviz products can be viewed, configured, and managed through the dedicated, completely free app, available for iOS and Android. By installing the Ezviz app on your smartphone, simply scan the QR code to get online immediately.
