Ezviz | CS-CMT - Solar Panel-C - Charging Solar Panel

Ezviz CS-CMT Solar Panel-C is a waterproof charging solar panel designed for Ezviz battery-powered cameras. Connect your Ezviz battery-powered camera to the solar panel (using the included Micro USB cable) to capture the clean and free energy from the sun. Ezviz - CS-CMT - Solar Panel-C is made with monocrystalline silicon solar cells and provides up to 4.18 W of power to the cameras. With this solar charging panel, you'll only need a few hours of direct sunlight each day to keep your camera running. The panel is built with a durable frame and stainless steel screws to withstand rain, dust, snow, and sun. The Micro USB cable has a modified connector that works waterproof in Ezviz products (not usable for other devices).

The charging solar panel is compatible with the following models: BC1C, BC1C 2K+, BC1-B1, BC1-B2, BC1-B3, BC1, C3A (only Version C), HB8.

Features of the Charging Solar Panel

• Eco-friendly and cost-effective solar power supply
• High light absorption with monocrystalline silicon cells
• High charging efficiency (up to 4.18 W)
• 4-meter cable for flexible installation
• Weather-resistant IP 65 design

Installing the Charging Solar Panel

With an adjustable mounting bracket that rotates 360° and a 4-meter cable, Ezviz - CS-CMT - Solar Panel-C offers incredible flexibility. Simply install your security camera where you need it and then find a sunny spot to install the solar panel.

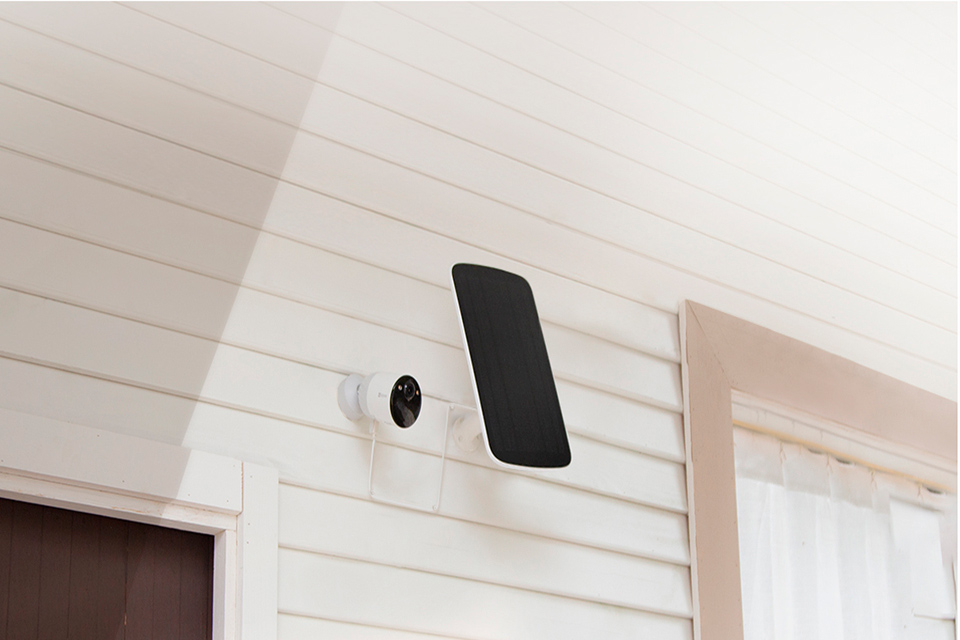

Continuous Protection

Waterproof Design

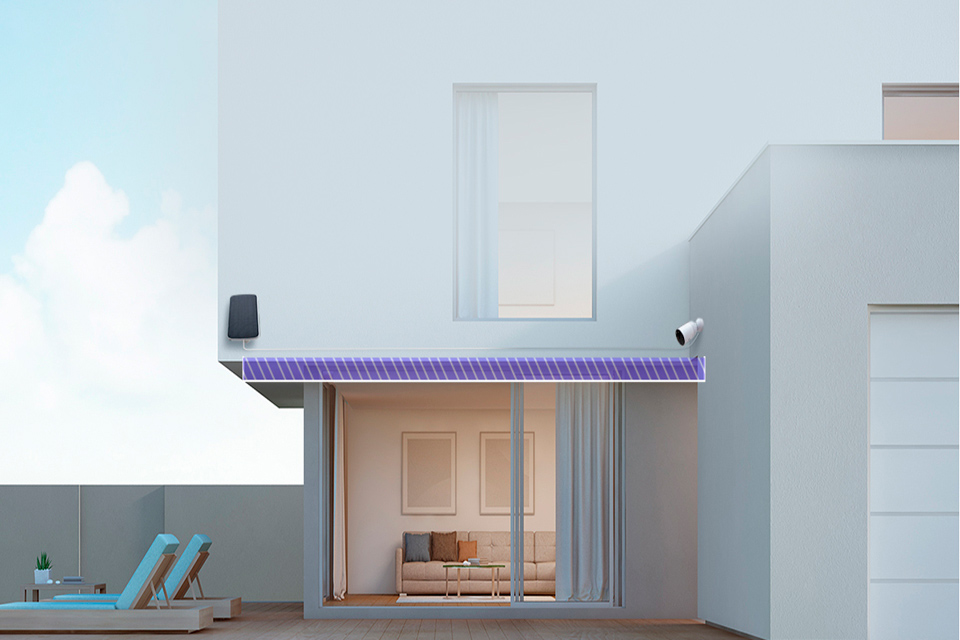

Flexible Installation

Technical Specifications of Ezviz - CS-CMT - Solar Panel-C

• Open circuit voltage: /
• Short circuit current: /
• Power supply voltage: 6.0 V ± 5%
• Power supply current: 1030 mA ± 5%
• Maximum power: 4.18 W
• Conversion efficiency: 0.216
• Operating temperature: -20/+60 °C (-4/+140 °F). Humidity 90% or lower (no condensation)
• Protection grade: IP65
• Solar cell type: Monocrystalline
• Certifications: UL / CE / FCC / REACH / RAEE / RoHS / UKCA
• Dimensions: 292.3x194.3x15.1 mm (11.5"x7.6"x0.59")
• Weight (without bracket): 1045 g (36.86 oz)

Package Contents

• 1 x Solar Panel
• 1 x Adjustable mounting bracket
• 1 x 4-meter cable
• 1 x Set of plugs
• 1 x Installation hole template
• 1 x Quick guide
