EZVIZ - DP2C - Doorbell with wireless peephole

EZVIZ - DP2C - Doorbell with wireless peephole

EZVIZ - DP2C is a wireless peephole doorbell with an elegant and modern structure, as well as numerous functions that guarantee maximum security for the control of the entrance door. This Wi-Fi peephole doorbell will allow you to enjoy clear images and smart features, such as the ability to talk to visitors via the internal color monitor. Furthermore, using the EZVIZ app, you will be able to receive alerts on your Smartphone of any suspicious activity that occurs near the entrance to your home. EZVIZ - DP2C is able to record all the activities that take place near the front door in FHD resolution. The large 4.3" screen is particularly useful for children and the elderly, who will be able to locate people outside easily and clearly.

---

If you need other smart cameras, please click here.


When a visitor presses the doorbell button of the EZVIZ - DP2C, you will hear a pleasant ringtone produced by the integrated buzzer and you will receive a real-time video call on your Smartphone. EZVIZ - DP2C, in fact, guarantees the timely receipt of alerts on the Smartphone of all visitors who show up at the entrance, thanks to the PIR movement detection system. The wireless peephole ensures excellent visual coverage thanks to the 155° ultra-wide-angle lens and allows clear and precise night vision of objects up to a distance of 5 meters. It is also able to automatically switch between day and night modes.

---

Wi-Fi peephole video features

• Videos up to 1080p
• 155° ultra-wide angle view
• PIR motion detection system
• Live view and two-way video call
• 4.3" color screen
• Night vision up to 5m (16ft) away
• Integrated electronic bell
• 4,600mAh rechargeable lithium battery
• H.265 video technology
• Support for microSD cards (up to 256GB)

---

EZVIZ - DP2C has been carefully designed to adapt naturally and ensure maximum ease of installation to any type of door. The outdoor camera has a discreet, invisible and tamper-proof structure to ensure maximum privacy for your family. The wireless peephole is equipped with a 4,600mAh rechargeable lithium battery and does not require complex wiring. Thanks to its smart energy saving function, the extended standby time can last up to 90 days.

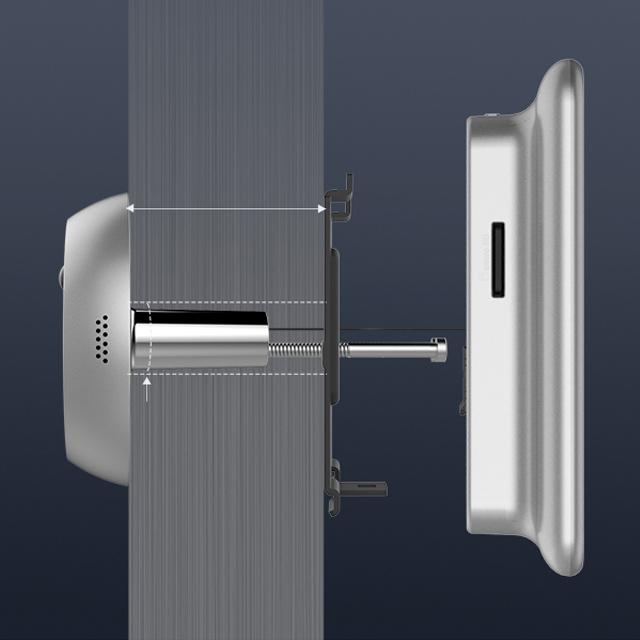

Some pictures showing the assembly and features of EZVIZ - DP2C

---

Wherever you live, whether in an apartment accessible from a narrow corridor, or in a house with a large entrance courtyard, you can always customize the alert activation conditions by selecting one of the three detection sensitivity levels available. You can also choose to archive your videos flexibly and securely on a 256GB memory card, which can be inserted into the internal monitor. This ensures data security in case of damage to the outdoor camera. Or, if you prefer, you can subscribe to EZVIZ cloudPlay to enjoy fully encrypted cloud storage service.

---

Technical characteristics of EZVIZ - DP2C

• Screen: 4.3" color touch
• Button: bell; power on; reactivation of the screen
• Supported peephole diameter: 16/50 mm (0.62"x1.96")
• Supported door thickness: 35mm/105mm (0.5"x4.13")
• Operating conditions: -10/+45 °C; maximum humidity 95% (non-condensing)
• Sensor: 1/3" Progressive Scan CMOS
• Lens: 2.0mm at F2.2, angle of view: 155° (diagonal)
• Resolution: 1080p/2MP max.
• Day/night switching: ICR infrared filter
• Video frame rate: 15fps
• Audio input: built-in high sensitivity microphone
• Audio output: built-in high power speaker
• Buttons: doorbell, power, wake up screen
• Detection: Advanced PIR motion
• Detection angle: PIR 110°
• Detection distance: PIR up to 6m (19.7ft)
• PIR sensitivity: adjustable (3 modes)
• Image Distortion Correction: Yes
• Local storage: micro SD cards (up to 256GB)
• Cloud storage: EZVIZ cloudPlay
• General functions: video encryption and cloud image encryption
• Protocol: EZVIZ cloud
• WiFi Standards: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4GHz ~ 2.4835GHz
• Channel Bandwidth: 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Baud rate: 11b: (11Mbps); 11g (54Mbps); 11n (150Mb/s)
• Power supply: DC 5V ± 10%
• Power consumption: 2.2W max.
• Certifications: UL / CE / FCC / REACH / WEEE / RoHS / UKCA
• Screen and base size: 115x85x24mm (4.52"x3.34"x0.94")
• Peephole size: 71x71x48 mm (2.79"x2.79"x1.88)
• Weight: 302g (10.65oz)

---

Box contents

• 1 x DP2C peephole doorbell
• 1 x Panel
• 1 x Mount Base
• 1 x Power Cable
• 1 x 6 screws
• 1 x Quick Start Guide

---
