Ezviz | HB3-B1 - Kit with 1 Battery Camera + Base
Ezviz - HB3-B1 is a kit consisting of 1 Ezviz HB3 battery camera + 1 Ezviz B1 base with excellent video and Wi-Fi performance, offering all the essential features for detecting and actively protecting your home. The Ezviz HB3 camera incorporates the proprietary HaLow Wi-Fi system, which provides higher connection performance compared to other domestic cameras on the market. Its transmission range is longer and can surpass walls and obstacles, ensuring lower energy consumption. The Ezviz B1 base further enhances the camera’s performance, providing a constant connection to the internet, triggering the alarm when unusual activity is detected, and securely storing video footage locally.
This camera has a built-in 5,200 mAh battery capable of running for 120 days, with a daily detection activity of 300 seconds. If you wish to keep the camera constantly charged, you can purchase the Ezviz | CS-CMT - Solar Panel-C.
If you need additional smart cameras, click here.
Ultra Sharp 2K Resolution
Ezviz - HB3 features an ultra-sharp 2K resolution that allows you to appreciate all image details, even at night. The camera offers color night vision up to a distance of 15 meters, with options for either color mode or infrared black and white mode. Equipped with a built-in PIR sensor and an algorithm for detecting human figures, Ezviz - HB3 can distinguish between people, animals, and moving objects.
Kit Features
- 2K resolution
- Battery life (5200 mAh) up to 120 days
- Intelligent motion detection of people
- Base station included (supports micro SD cards up to 256 GB)
- Proprietary high-performance HaLow Wi-Fi
- Color night vision
- Two-way communication
- Customizable voice notifications
- Active Defense with siren and strobe light
- H.265 video technology
- Waterproof design
- Smart integration with Google Assistant and Amazon Alexa
24/7 Active Defense
Ezviz - HB3 features an active defense function for an extra layer of protection. If any intruders are detected, the camera will trigger a loud siren and two flashing spotlights to scare them away. Using your smartphone, you can activate the two-way communication function, or pre-record a 10-second voice message that will be automatically played when the camera detects moving people.

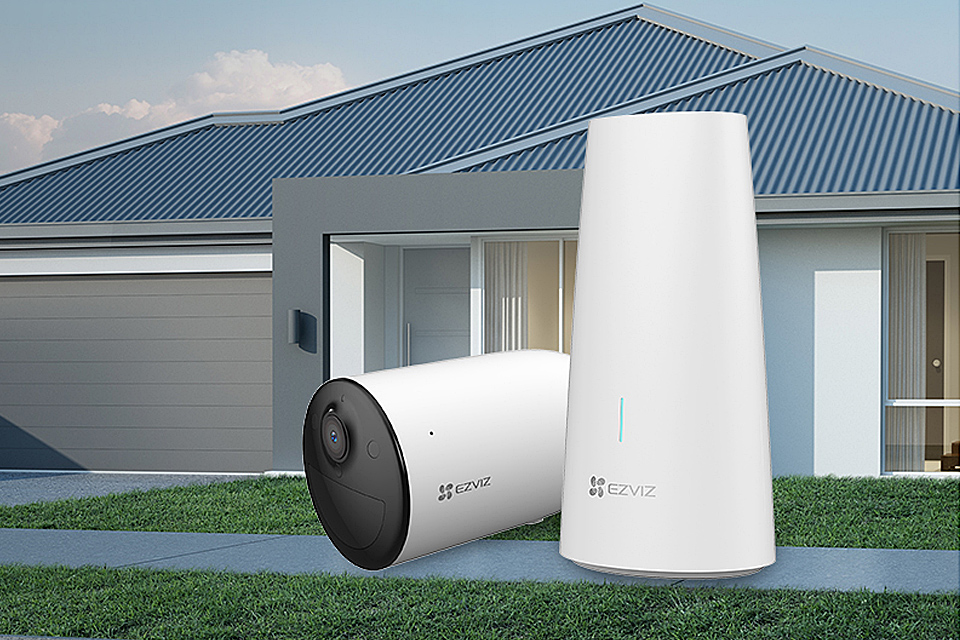

The Ezviz - HB3-B1 Kit
A long-lasting battery
All features via app
Unlike the previous H.264 video compression technology, the new H.265 technology offers a smoother viewing experience. Additionally, you no longer need to worry about large video files taking up too much space, as this technology reduces file sizes by up to 50%. The camera's casing is also durable and waterproof, withstanding not only dust but also the harshest weather conditions.
Technical Features of Ezviz - HB3-B1
- Image Sensor: 1/2.8" CMOS progressive scan, 3 megapixels
- Minimum Illumination: 0.01 lux with (f 2.0, AGC active), 0 lux with IR
- Shutter Speed: Auto-adaptive
- Lens: 2.8 mm - f 2.0. Field of view: 131° (diagonal), 110° (horizontal), 58° (vertical)
- Battery Capacity: 5200 mAh
- Day and Night Vision: IR filter with auto-switch
- DNR: 3D DNR
- Night Vision: IR distance: 15 m (49.21 ft); color night vision distance: 15 m (49.21 ft)
- Max Resolution: 2K / 3 MP; 2304x1296 px
- Frame Rate: 15 fps (auto-adaptive during network transmission)
- Video Compression: H.265 / H.264
- Video Transmission Speed: Ultra HD; Full HD; HD; adaptive transmission speed
- Audio Transmission Speed: Auto-adaptive
- Bitrate: 1.5 Mbps
- Wi-Fi Standard: IEEE802.11AH
- Frequency Range: 904 M-928 M (US), 865 M-867 M (EU)
- Channel Bandwidth: 8 M (US), 2 M (EU)
- Security: WEP, WPA / WPA2, WPA-PSK / WPA2-PSK 64/128 bit
- Wi-Fi Pairing: HaLow; AP pairing
- Protocol: Proprietary Ezviz cloud
- Interface Protocol: Proprietary Ezviz cloud
- Minimum Network Requirements: 4 Mbps
- Functions: Smart alarm system; intelligent human motion detection
- Customizable Alarm Area: Yes
- Two-Way Communication: Yes
- General Features: Anti-flicker; heartbeat; password protection; watermark
- Local Storage: micro SD (up to 256 GB) in the base station
- Cloud Storage: Ezviz CloudPlay (subscription required)
- Operating Conditions: -20/+45 °C (-4/+113 °F); 95% humidity or lower (no condensation)
- Protection Rating: IP65
- Camera Power Supply: 5 V DC / 2 A
- Base Power Supply: 12 V DC / 1 A
- Power Consumption: 10 W
- Certifications: CE / FCC / WEEE / RoHS / REACH / UL
- Camera Dimensions: 62.8x105.9 mm (2.47"x4.16")
- Base Dimensions: /
- Camera Weight: 230 g (8.11 oz)
- Base Weight: 208 g (7.33 oz)
Package Contents
- 1 x Ezviz - HB3 Camera
- 1 x Ezviz - W2HS Base
- 1 x Power Adapter (for base)
- 1 x Mounting Plate
- 1 x Ethernet Cable
- 1 x USB Cable
- 1 x Drilling Template
- 1 x Screw Kit
- 1 x Regulatory Information
- 1 x Quick Guide
If you have questions or concerns about Ezviz products
Click the button below

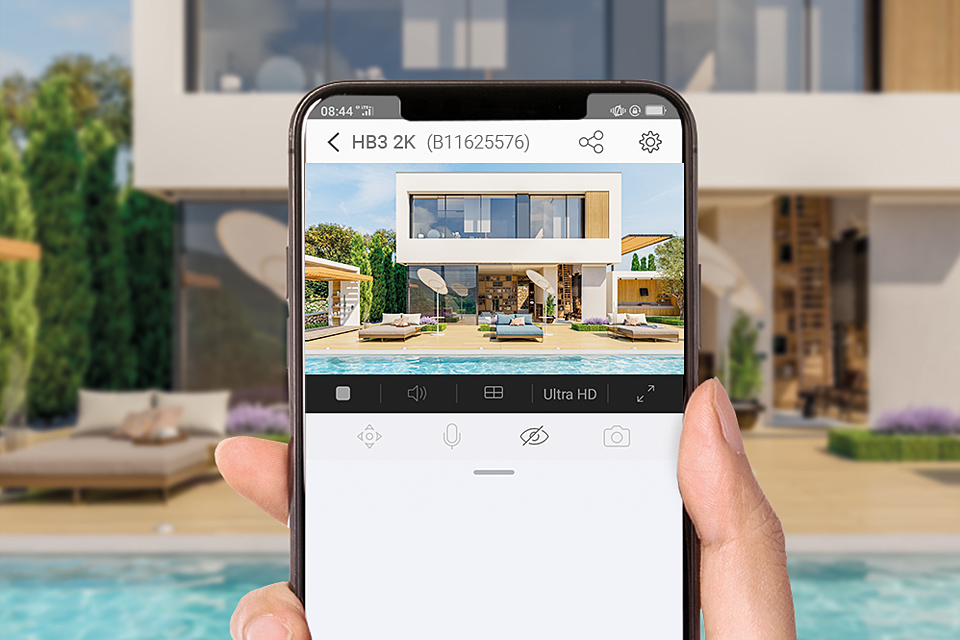

One App and an Application for Windows
All Ezviz products can be viewed, configured, and managed via the dedicated app, which is totally free and available for iOS and Android. Simply install the Ezviz app on your Smartphone, and you’ll be online by scanning the QR code. If you'd like to view your camera's recordings on a PC (Windows only), scan the specific QR code.
Download one of the applications
Battery-powered cameras offer different durations depending on the model, but in general there are some precautions that can be taken to improve battery life. The batteries present in Ezviz products are lithium batteries, therefore we recommend that for a longer overall lifespan, you maintain their state of charge between 50% and 80%, it is known to be the ideal % of charge that allows the lithium batteries last longer, offering greater performance.
Furthermore, by intervening on the sensitivity and frequency of detection, it will be possible to remodulate the notifications and therefore the activities that the cameras will have to monitor and notify you.
Some routers can lead to higher battery consumption, this depends on the technology of the router or the power with which the signal arrives, the better the reception, the lower the consumption.
Some cameras, in addition to allowing direct connection to Wi-Fi, offer the possibility of using a Hub or Gateway for data communication, this usually has lower energy consumption than a direct data connection.
For compatible models, we recommend that you consider installing a dedicated Ezviz solar panel, which will allow the battery to be recharged daily using solar energy.
