Ezviz | HP7 2K - Smart Video Doorphone

Ezviz - HP7 2K is a smart video doorphone that allows you to upgrade your old and bulky intercom system to make it internet-connected, remotely accessible, and controllable via an app. Ezviz - HP7 2K is the first video doorphone from Ezviz that maximizes convenience for homeowners, even when they are not at home, to view, talk to, and grant access to visitors. This smart video doorphone also enhances home security, as the 2-in-1 camera and outdoor phone help record sharp 2K videos and detect people with real-time mobile notifications. The video doorphone is waterproof, has dual controls for the gate and door, and can be easily installed with just 2 wires, though it is also compatible with 4-wire systems.

If you need additional smart cameras, click here.

Features of the Smart Video Doorphone

• 7-inch color touchscreen
• Remote unlock for door/gate
• 2 wires
• Smart human motion detection
• Two-way conversation (supports voice change function)
• Built-in doorbell with multiple ringtones
• Smart RFID Unlock (3 tags included)
• Weather-resistant design
• 3 name tags included
• Supports dual-band Wi-Fi 2.4/5 GHz
• Supports MicroSD card (up to 512 GB) and Ezviz cloudPlay storage

The 7" color touchscreen of Ezviz - HP7 2K allows you to configure and manage the outdoor intercom, answer visitors, and save important video clips. Every time a visitor rings the doorbell, the screen inside will automatically light up to let you know who is outside. Additionally, you can use your smartphone to stay connected and remotely open the door for guests. When responding to uninvited strangers, you can also enable the voice change function to remain unidentifiable and add another layer of protection. Ezviz - HP7 2K is designed to display ultra-wide, sharp images from day to night. With a 162° viewing angle and a 2K lens, you can easily see a postman from head to toe without any pixelated or blurry details. The Ezviz - HP7 2K camera also offers 5-meter infrared night vision for maximum peace of mind 24/7.

Included are 3 programmable electronic keys that serve as gate openers, so you don't have to use traditional keys. This will allow you to manage activation and deactivation of electronic keys via the app. You can also install a secondary monitor either via wired or wireless connection with the 7" Ezviz SD7 Monitor, which will be able to manage all the Ezviz home automation linked to your account.

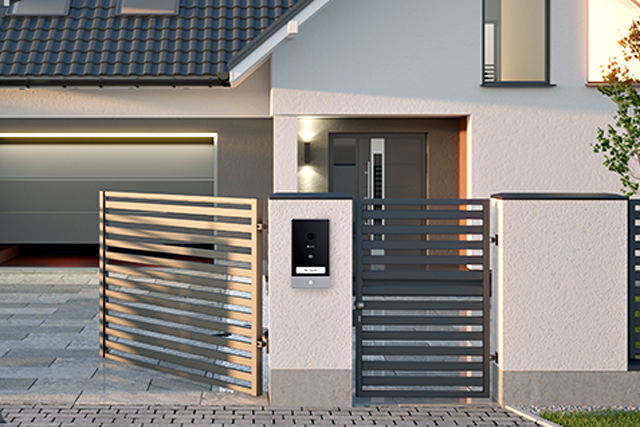

The video doorphone installed outdoors

The video doorphone outdoors and the monitor indoors

The video doorphone is remotely manageable from the Ezviz app

Enhanced Security with Smart Human Motion Detection

Whenever Ezviz - HP7 2K detects human activity at your front door, it will immediately send mobile notifications in case there is an uninvited guest. You can always optimize the detection sensitivity and set specific detection zones to reduce unwanted alerts. Ezviz - HP7 2K has an elegant and minimalist design that matches the modern tastes of a stylish home. The internal monitor screen also maximizes the touch area, enhancing the entire user experience. To maximize your connection experience with remotes, you can connect the internal monitor to the 2.4 or 5 GHz band. Enjoy strong Wi-Fi with lower latency, higher bandwidth, and a stable signal.

Optimized storage space with smaller video files thanks to H.265 video compression technology, creating a smoother viewing experience with recorded footage. Meanwhile, you won't have to worry about large video files taking up too much storage space: H.265 technology can reduce their size by up to 50%⁴. You can protect your recorded videos on a local microSD card up to 512 GB or subscribe to Ezviz cloudPlay for fully encrypted cloud storage.

Technical Features of Ezviz - HP7 2K

Product type: outdoor intercom + internal monitor
Image sensor: 1/2.7" progressive scan CMOS (supports low light sensitivity)
Lens: 2.0 mm @ F2.2, viewing angle: 162° (diagonal)
IR Filter: day and night with automatic switching, 850 nm IR light x 2 (max. 6 m)
Resolution: 2048x1296 max.
DNR: 2D/3D
Video Compression: H.265 / H.264
Frame Rate: 15 fps max.; adaptive during network transmission
Connection method: wired (2 wires, compatible with 4 wires), digital signal transmission
Transmission distance: 2x0.75 mm² (max. 50 m); 2x1.5 mm² (max. 100 m); twisted pair (max. 120 m)
Door Opening: 2 doors
Door Unlocking: 2 doors
Door Opening Methods: RFID badge unlock (3 badges included); App remote unlock; Internal display unlock
Audio Input: built-in high-sensitivity microphone
Audio Output: built-in high-power speaker
Doorbell Button: yes
Name Tags: 3 name tags
Terminal: 2 wiring terminals to connect the screen. Two terminals to connect the gate. Two terminals to connect the electric meeting plate.
Smart Alarm: smart human motion detection, persistent detection
Supports: tamper alarm
Video Doorphone: long-distance two-way conversation
Operating Conditions: -30/+60 °C (-22/+140 °F), humidity 95% or lower (no condensation)
IP Rating: waterproof with screen cover
Screen: 7" touchscreen
Resolution: 1024x600
Audio Input: built-in high-sensitivity microphone
Audio Output: built-in high-power speaker
Button: on/off screen button
Terminal: 2 wiring terminals
Storage: microSD cards up to 512 GB; Ezviz cloud storage
Proprietary Protocol: Ezviz cloud
Interface Protocol: Ezviz Cloud
Protocol: Ezviz Connect
Standard: Wi-Fi IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range: 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Bandwidth: 20 MHz
Security: WEP 64/128 bit, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Speed: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps, 11ac: 433.3 Mbps
Ringtones: multiple Up to 20
Features: live view, playback, two-way conversation, video call
Operating Conditions: -10/+45 °C (-14/+113 °F), humidity 95% or lower (no condensation)
Power Supply: DC 24 V / 1.5 A, adapter (100-240 V AC)
Power Consumption: 8 W, max. 24 W
Certifications: UL / CE / FCC / REACH / WEEE / RoHS / UKCA
Dimensions: 161x87x20 mm (6.34"x3.42"0.79")
Weight: 855 g (30.16 oz)

Package Contents

• 1 x Monitor
• 1 x Wall mount bracket for monitor
• 1 x Power adapter for monitor
• 1 x Drill template for monitor
• 1 x Intercom panel
• 1 x Drill template for intercom button
• 1 x Screwdriver
• 3 x Badges (electronic key)
• 2 x Screw kits
• 2 x Name cards
• 1 x Wires and connectors
• 2 x Regulatory information
• 1 x Quick Guide

If you have any questions or doubts about the operation of Ezviz products
Click the button below

One App and One Windows Application

All Ezviz products can be viewed, configured, and managed via the dedicated app, totally free, available for iOS and Android. Install the Ezviz app on your smartphone, simply scan the QR code to get online. If you want to view your camera recordings on PC (for Windows only), scan the specific QR code.

Download one of the apps
